13.3-inch Diagonal Industrial TFT LCD Display Module Full HD 1080p 1000nits Brightness Capacitive Touch eDP Interface

  • 1
  • 2
  • 3

Brand Name : SAEF

Model Number : SFTO1330SM-7208A3CT2

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : USD70-USD150. The lowest market price guaranteed.

Payment Terms : 100% Prepay for samples; 50% deposit, 50% paid before shipment for bulk.

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Brightness : 1000 cd/m² (Sunlight Readable)

Screen Size : 13.3-inch Diagonal

Resolution : 1920×1080 Pixels (RGB Stripe)

Storage Temp. : -20°C to +70°C

Operating Temp. : -30°C to +80°C

Touch Technology : Capacitive Touch Panel

Interface : 2-lane eDP 1.2 (2.7Gbps)

Color Gamut : 72% NTSC

Viewing Angles : 85°/85°/85°/85°

Backlight Lifetime : 50,000 Hours (LED, @25°C)

Surface Treatment : AG/AR/AF Coatings (Selectable)

Contrast Ratio : 800:1 (Typical)

Surface Hardness : ≥6H (Anti-Glare, Haze 10%)

IC Options : EETI, ILITEK, Cypress, Goodix

Environmental Resistance : Operational in Fog/Surface Moisture

Compliance : RoHS, Halogen-Free, ISO 9001/14001 (EU/US Certified)

Contact Now

Industry-Leading 1000nits TFT Display for Extreme Visibility

The SFTO1330SM-7208A3CT2 redefines high-brightness performance with an exceptional 1000 cd/m² luminance, engineered for critical applications across North America and Europe. Ideal for outdoor kiosks, industrial HMI, and medical equipment, this 13.3-inch FHD TFT LCD module delivers unmatched clarity in direct sunlight or high-ambient environments. Featuring a rugged capacitive touchscreen (glove-compatible) and ultra-wide operating temperature range (-20°C to +70°C), it meets stringent EU/US industrial standards.

Core Innovations

  • Sunlight-Readable Clarity: 1000nits brightness + 72% NTSC color gamut for vivid visuals under harsh lighting.

  • Industrial-Grade Touch: Anti-glare cover glass (6H hardness), supports operation in fog/condensation (IP65-equivalent robustness).

  • High-Speed Connectivity: 2-lane eDP 1.2 interface (2.7Gbps) ensures zero-lag data transmission for real-time control systems.

  • 50,000-Hour Backlight: Energy-efficient LEDs with PWM dimming (100Hz–1.6KHz) reduce power consumption by 40% vs. CCFL.

  • Plug & Play Integration: Supports 3.3V logic power + 12V/24V backlight input, compatible with HDMI 2.0 driver boards (included in datasheet).

Technical Superiority for EU/US Markets

  • Optical Excellence: 85° viewing angles, 800:1 contrast ratio, and <35ms response time for smooth video playback.

  • Extreme Environment Ready: Operates at -20°C (freezing conditions) to +70°C (factory floors), with 72-hour humidity/thermal shock certification.

  • Zero-Compliance Risk: RoHS, Halogen-Free, ISO 9001/14001 certified – fully aligned with European EMC and US FCC directives.

  • Compact & Durable: Slim 5.2mm profile, shock-resistant design, and EMI-shielded I-PEX connectors.

Target Applications

  • Outdoor Payment Terminals (POS/Kiosks)

  • Industrial Control Panels (Automation, Robotics)

  • Medical Imaging Devices

  • Transportation Infotainment (Buses, Trains)

  • Smart Factory Equipment

Why Global Customers Trust This Display

Manufactured by Saef Technology (Shenzhen), the SFTO1330SM-7208A3CT2 combines military-grade durability with cutting-edge optics. Its eDP interface simplifies integration with NVIDIA Jetson, Raspberry Pi, and industrial PCs, while the sunlight-readable panel eliminates costly external shielding. Backed by a 2-year warranty, this module is the optimal choice for OEMs targeting reliability-driven markets in the USA, Germany, UK, and Scandinavia.

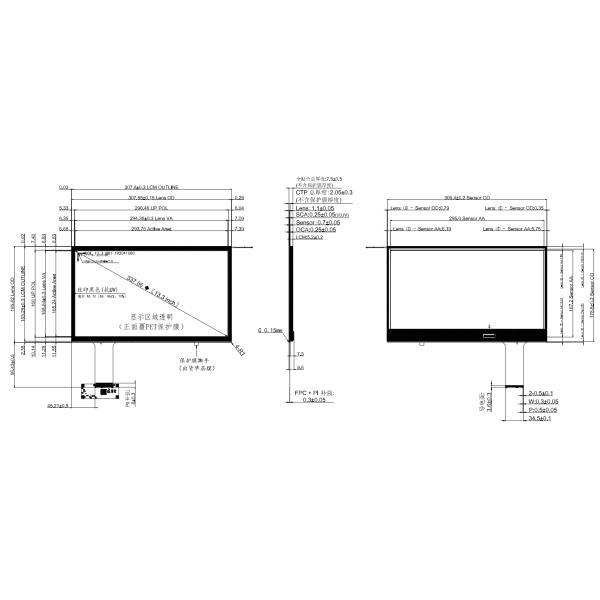

External Dimensions

13.3-inch Diagonal Industrial TFT LCD Display Module Full HD 1080p 1000nits Brightness Capacitive Touch eDP Interface

Interface Pin Definition

Pin No. Symbol I/O Function
1 CABC_ EN / NC - Reserved for CD
2 H_GND P High Speed round
3 Lane1_N I Complement Signal Link Lane 1
4 Lane1_P I True Signal Link Lane 1
5 H_GND P High Speed round
6 Lane0_N I Complement Signal Link Lane 0
7 Lane0_P I True Signal Link Lane 0
8 H_GND P High Speed round
9 AUX_CH_P I True Signal Auxiliary Channel
10 AUX_CH_N I Complement Signal Auxiliary Channel
11 H_GND P High Speed round
12 LCD_VDD P LCD logic and driver power(3.3V)
13 LCD_VDD P LCD logic and driver power(3.3V)
14 NC I Reserved for LCD manufacturer’s use
15 LCD_GND P LCD logic and driver ground
16 LCD_GND P LCD logic and driver ground
17 HPD O HPD signal pin
18 LED-1 P Backlight ground
19 LED-2 P Backlight ground
20 LED-3 P Backlight ground
21 LED-4 P Backlight ground
22 BL_ ENABLE I Backlight on/off
23 BL_PWM_DIM I System PWM
24 SCL/NC - Reserved for LCD manufacturer’s use
25 SDA/NC - Reserved for LCD manufacturer’s use
26 BL_PWR P Backlight power
27 BL_PWR P Backlight power
28 BL_PWR P Backlight power
29 BL_PWR P Backlight power
30 NC - Reserved for LCD manufacturer’s use

Optical Characteristics

Para meter Conditions Min. Typ. Max. Unit

Viewing Angle (CR>10)

 Horizontal θL - 85 -

degree
θ R - 85 -
Vertical θT - 85 -
θB - 85 -
Contrast Ratio Center 600 800 - -
Response Time Tr+Td - 30 35 ms

CF Color Chromaticity (CIE1931)

 Red x

Typ.

-0.05

 TBD

Typ.

+0.05

 -
Red y TBD -
Green x TBD -
Green y TBD -
Blue x TBD -
Blue y TBD -
White x (0.323) -
White y (0.379) -
NTSC ratio % (72) -

Center Luminance of white

 YLI 800 1000 cd/m2

Backlight Characteristics

Parameter Symbol Min. Typ. Max. Unit
Supply voltage VBL 5 12.0 37 V

Power supply Current for Backlight

 ILED 6

-

 25 mA
Power supply for Back light PLED 0.18 - 5.55 W
Modulated light signal voltage VPWM H 1.2 - 5.0 V
VPWM L 0 - 0.6 V
Brightness Control Duty Ratio Duty 1 - 100 %
Brightness Control frequency fPWM 100 - 1,600 KHz
LED-BL ON/OFF High voltage VCNTH 1.2 5.0 V
LED-BL ON/OFF low voltage VCNTL 0 - 0.6 V
LED lifetime - 40,000 50,000 - h

CTP Specification

Category Parameter Specification
General Structure Cover Glass + DITO Glass
Cover Lens Strengthening Chemically Strengthened
Cover Lens Surface Hardness ≥6H (Pencil Hardness)
Light Transmission Rate ≥85%
Operation Temperature -20℃ ~ +70℃, ≤85% RH
Storage Temperature -30℃ ~ +80℃, ≤85% RH
Electrical Interface IIC / USB / UART
Touch IC IL12511
Power Supply Voltage (VDD) 3.3V or 5V (Selectable)
Host Resistance (SDA/SCL) Configurable on Main-board
Environmental Operating Conditions Functional in fog/surface water
Surface Properties Surface Ink Anti-UV
Surface Treatment Anti-Glare (Haze: 10%)
LCD-TP Lamination OCA (Optically Clear Adhesive)
Compliance Material Standards RoHS & Halogen-Free Compliant

Product Image

13.3-inch Diagonal Industrial TFT LCD Display Module Full HD 1080p 1000nits Brightness Capacitive Touch eDP Interface

13.3-inch Diagonal Industrial TFT LCD Display Module Full HD 1080p 1000nits Brightness Capacitive Touch eDP Interface
